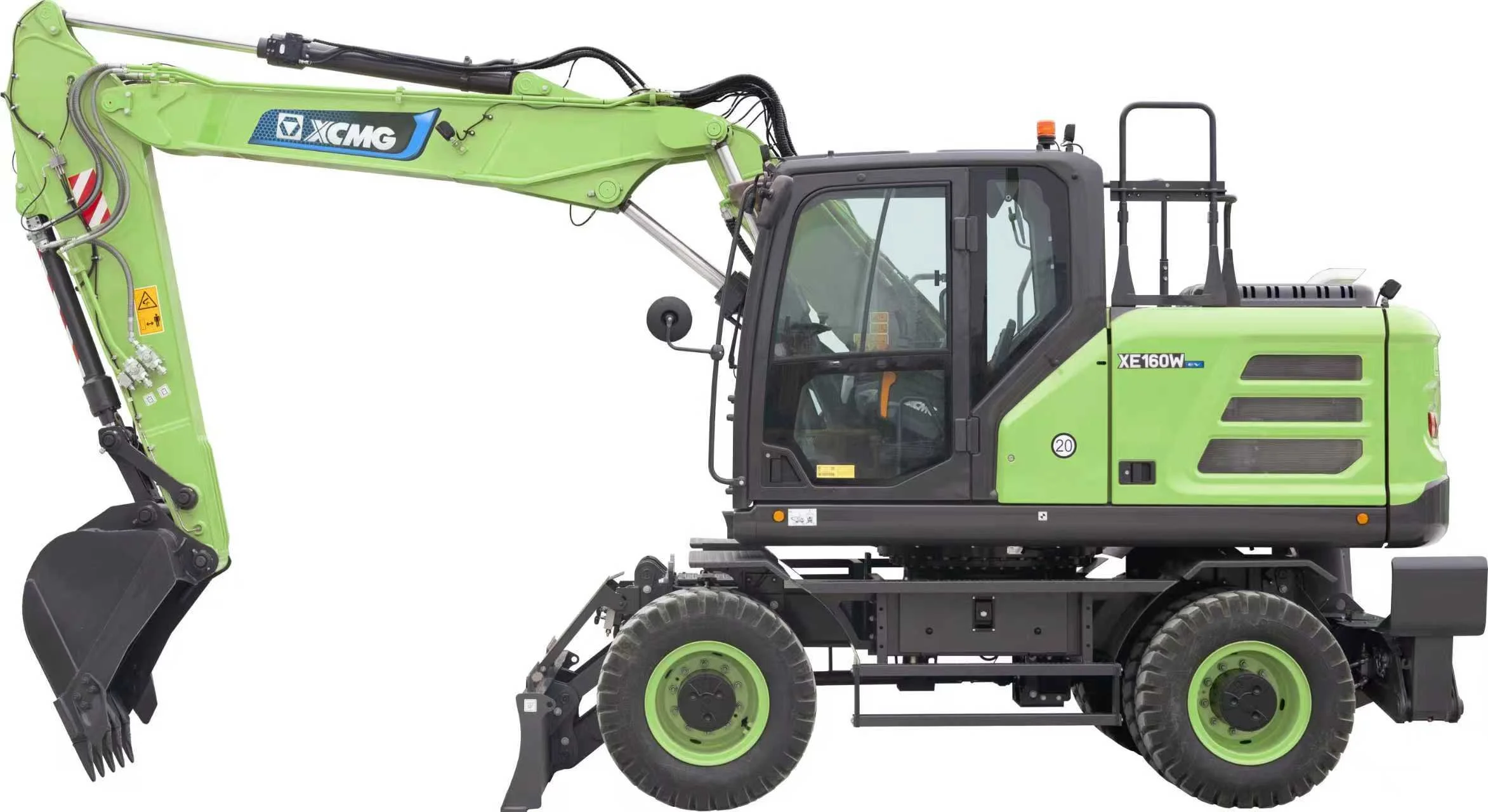

XCMG XE160W-EV
Weight: 19,700 kg
The XE160W-EV is a wheeled excavator that combines powerful performance with modern, zero-emission operation. The machine is designed for contractors and companies looking to reduce their operating costs and environmental impact without compromising on productivity, reliability, or comfort.
Thanks to advanced battery technology, XCMG’s electric excavators deliver high torque right from the start. The result is quick response, powerful digging and lifting force, and a machine capable of handling demanding tasks in sectors such as material handling, recycling, industry, construction sites, and agriculture.
-
Operating weight: 19,700 kg
Battery: 396.4 kWh CATL LFP
Rated power: 120 kW
Driving time: 7–9 hours
Power consumption (normal/aggressive driving): 45 kW/hour
DC charging: 320 kW
AC charging: 60 kW onboard charger
Maximum digging depth: 4,620 mm
Maximum reach: 7,780 mm
Bucket breakout force: 100 kN
Lifting capacity: 7,850 kg
Width: 2,530 mm
Rear turning radius: 2,380 mm
Maximum speed: 30 km/h
Standard bucket: 0.6 m³
-
396.4 kWh CATL battery
Engine power 120 kW
App control for preheating, as well as battery and charging status
Dual 10-inch LED screens
Wireless Qi Charging for Phones
360° camera with person detection and auto-stop
AUX 1 Single- and Double-Acting Hydraulics
AUX 2 double-acting slope hydraulic system
BFS Boom Float System (float mode)
BSS Boom Suspension System (boom suspension)
Automatic digging brake
Automatic Pendulum Lock
Folding plastic screens
Dual-mounted wheels 16L/PR
Two-piece boom
Rear cutting blade with mounting for an 80 mm ball
2 front hydraulic outlets
2 hydraulic and electrical outlets in the undercarriage for the brakes and tipping mechanism
Load-holding valves for booms and dippers
Lincoln Central Lubrication System
DAB Bluetooth Radio
Premium comfort seat, electric, ventilated
Cabin compressor with air gun
Electrically heated rear window
Electrically heated side mirrors, adjustable from the cab
AC/ECC Air Conditioning
18 LED work lights and an LED strobe light bar
60 kW onboard charger
Main switch
Panolin S4 HLP Synthetic Hydraulic Oil
