XCMG XC920-EV
Weight: 7,000 kg

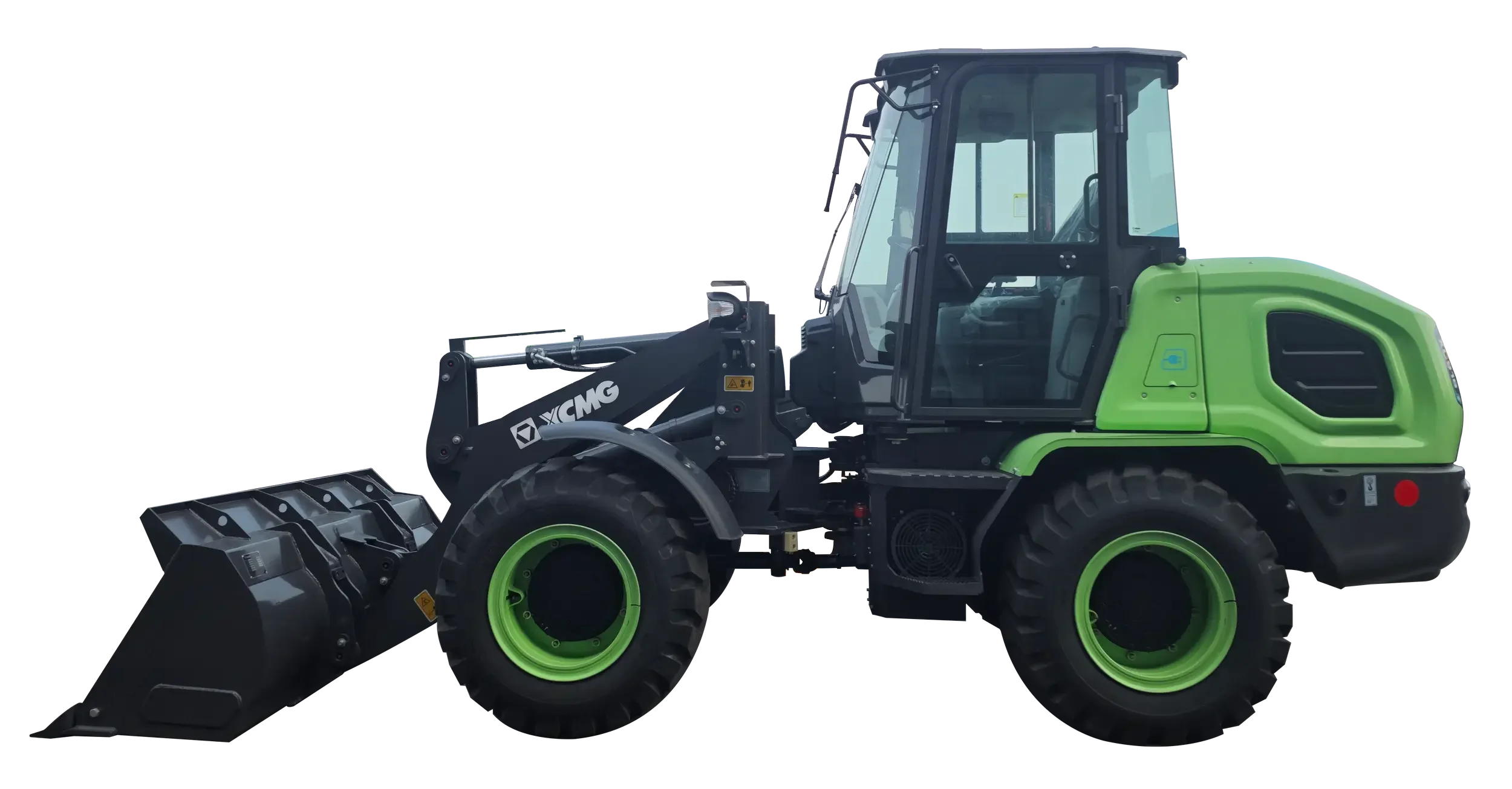

The XC920-EV combines powerful performance with smooth, all-electric operation. With a machine weight of 7 metric tons, it is designed for operations that need a compact and versatile wheel loader without compromising on capacity, reliability, or operator comfort.
With an 88 kWh battery, direct power, and an efficient electric powertrain, the XC920-EV delivers quick response and up to 60 kN of breakout force. The result is a versatile machine for material handling, recycling, industrial applications, construction sites, and agriculture.
-
Operating weight: 7,000 kg
Battery: 88 kWh LFP (70 kWh usable)
Rated power: 77 kW (peak power 110 kW)
Driving time: 5–7 hours
Bucket capacity: 1,200 liters
Tipping load: 5,049 kg straight, 4,376 kg at full swing
Breaking force: 60 kN
Maximum speed: 40 km/h
DC charging: up to 80 kW CCS2, 20–80% in about 70 minutes
AC charging: 11 kW
Hydraulic flow: 90 L/min, 120 L/min with high flow
Total cycling time: 11 seconds
-
88 kWh CATL LFP battery
Engine power: 77 kW
Volvo L30 Attachment Mount
3rd and 4th hydraulic functions
Electric joystick
Heated driver's seat with air suspension
Automatic door opener with remote control
Automatic Air Conditioning
10-inch touchscreen display
360° camera
App control for preheating, as well as battery and charging status
DAB Bluetooth Radio
Electrically heated rear window
Heated and electrically adjustable rearview mirrors
BSS Ride Control
BFS Float Mode
Tire 405/70R20
LED lights (8), and a strobe light bar
11 kW built-in AC charger
Main switch
Panolin S4 HLP Synthetic Hydraulic Oil
